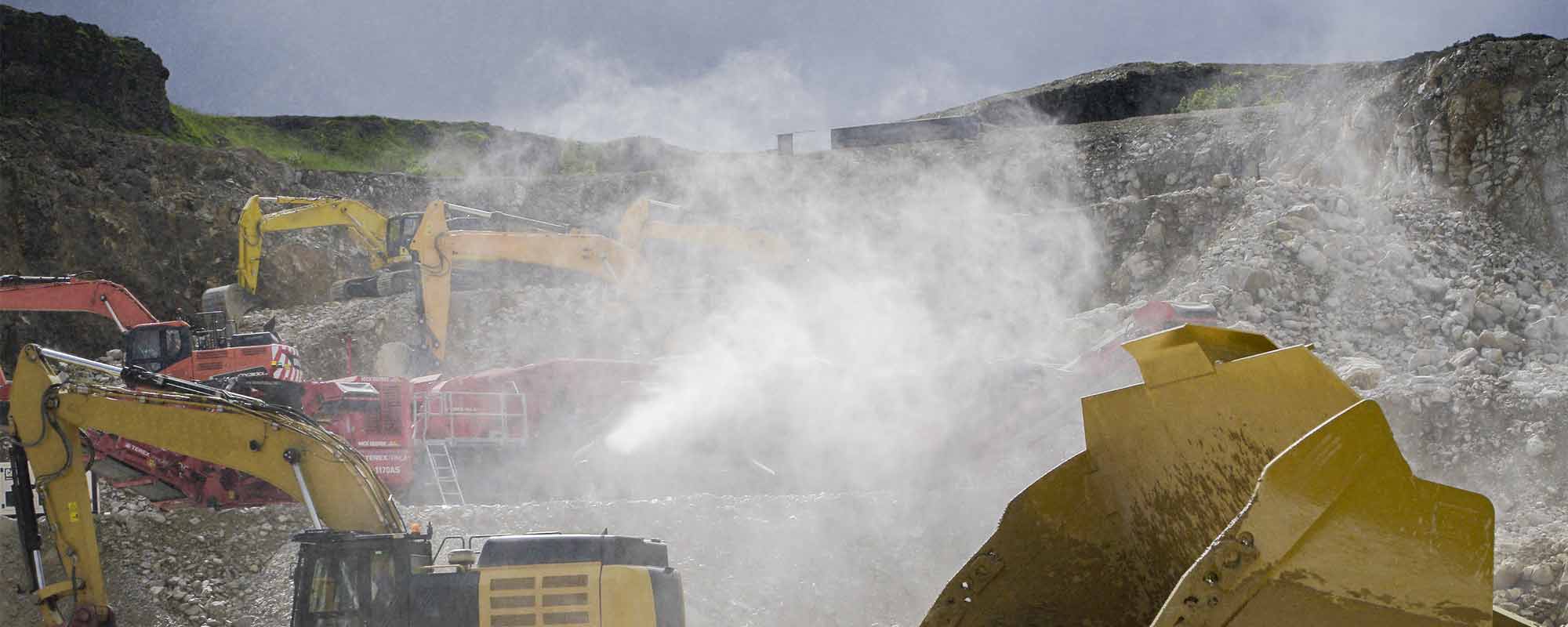

Waging war against dust

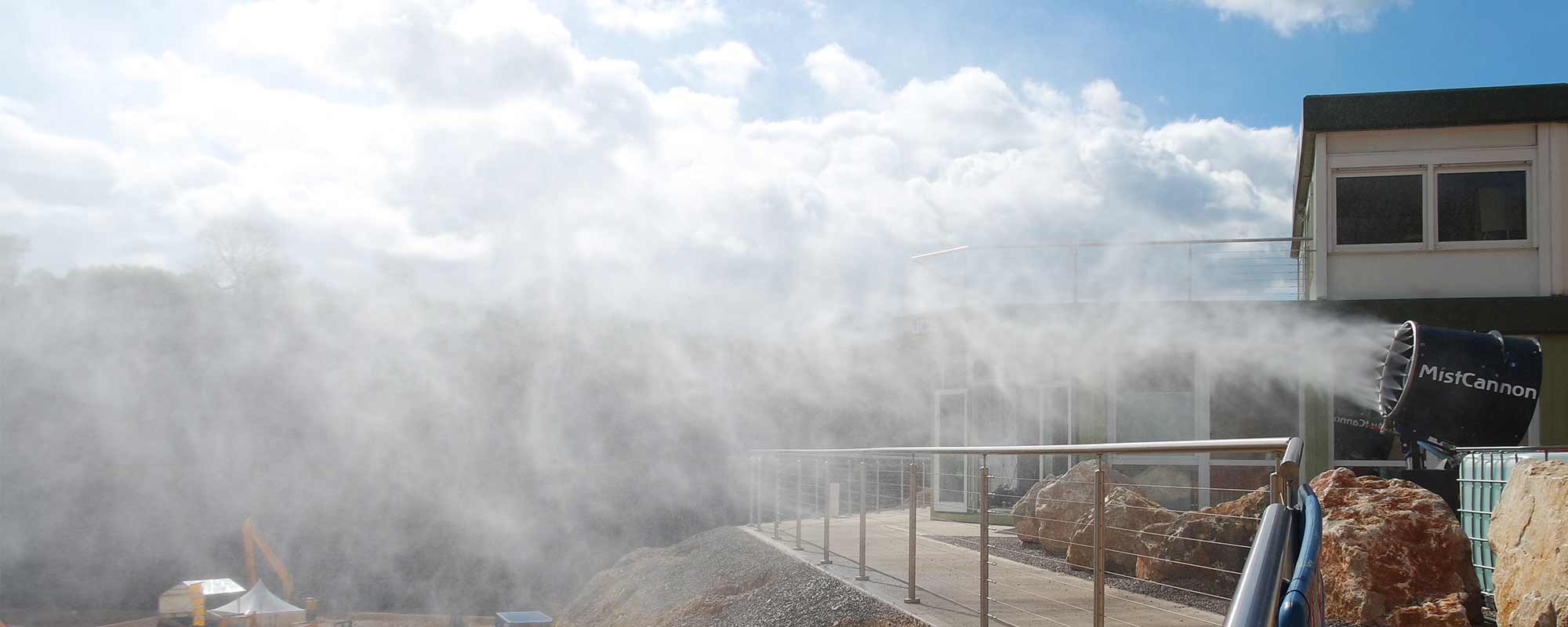

The MistCannon in full swing

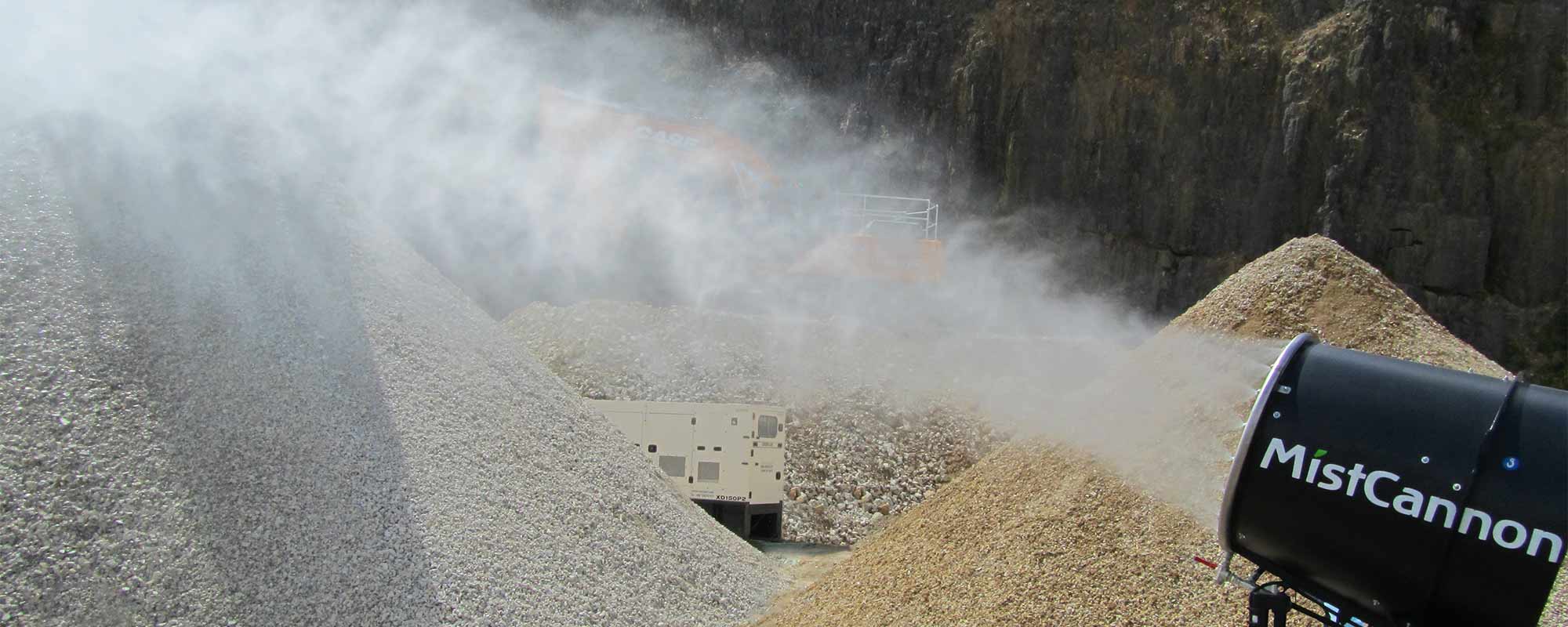

The popular choice for dust suppression in the quarrying industry

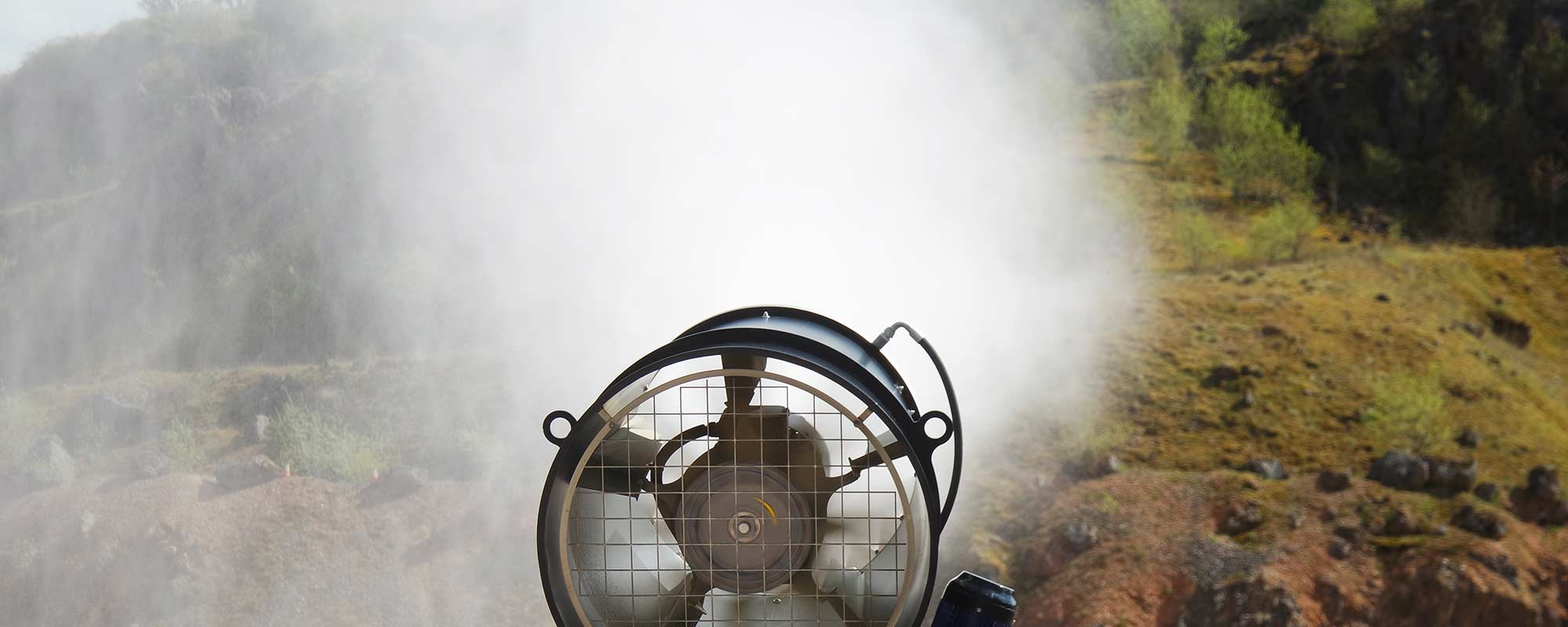

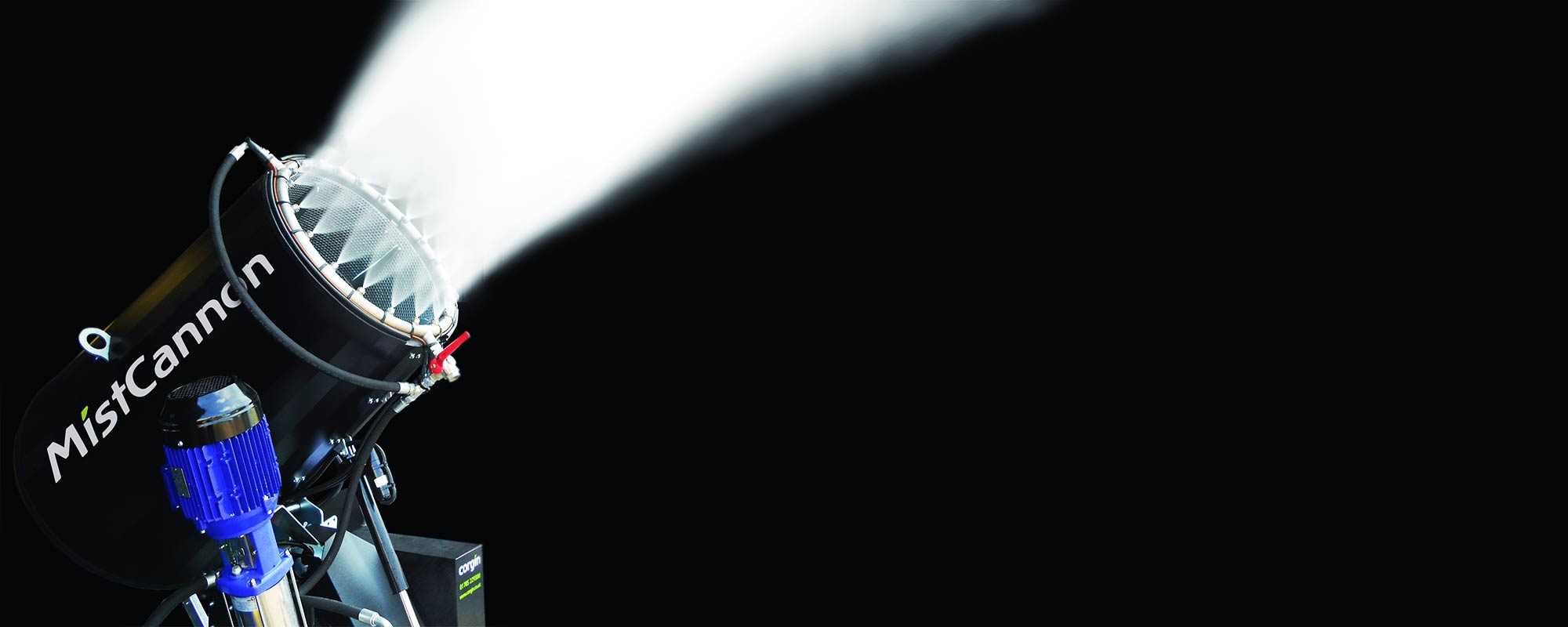

The fine mist is propelled by a powerful fan
The MistCannon D800 has an 80m throw
Suppressing dust emissions from a trommel

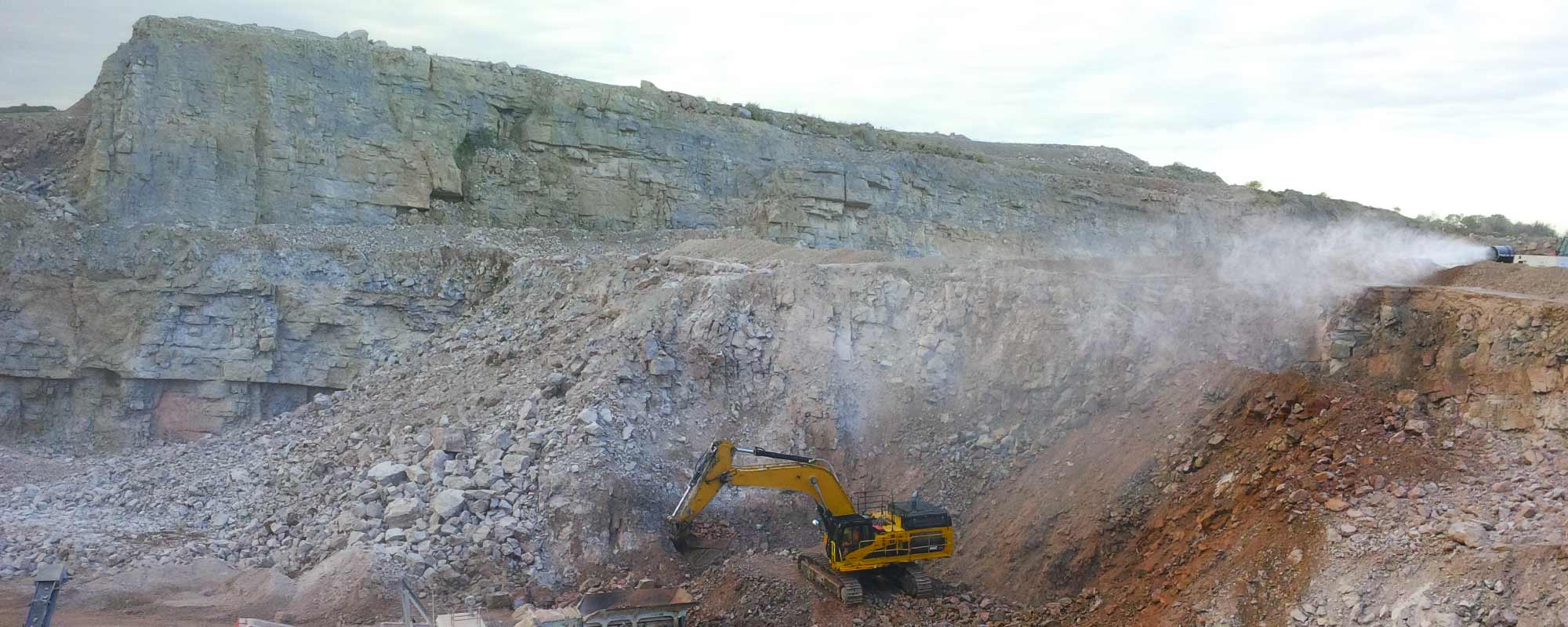

An essential piece of kit for quarries

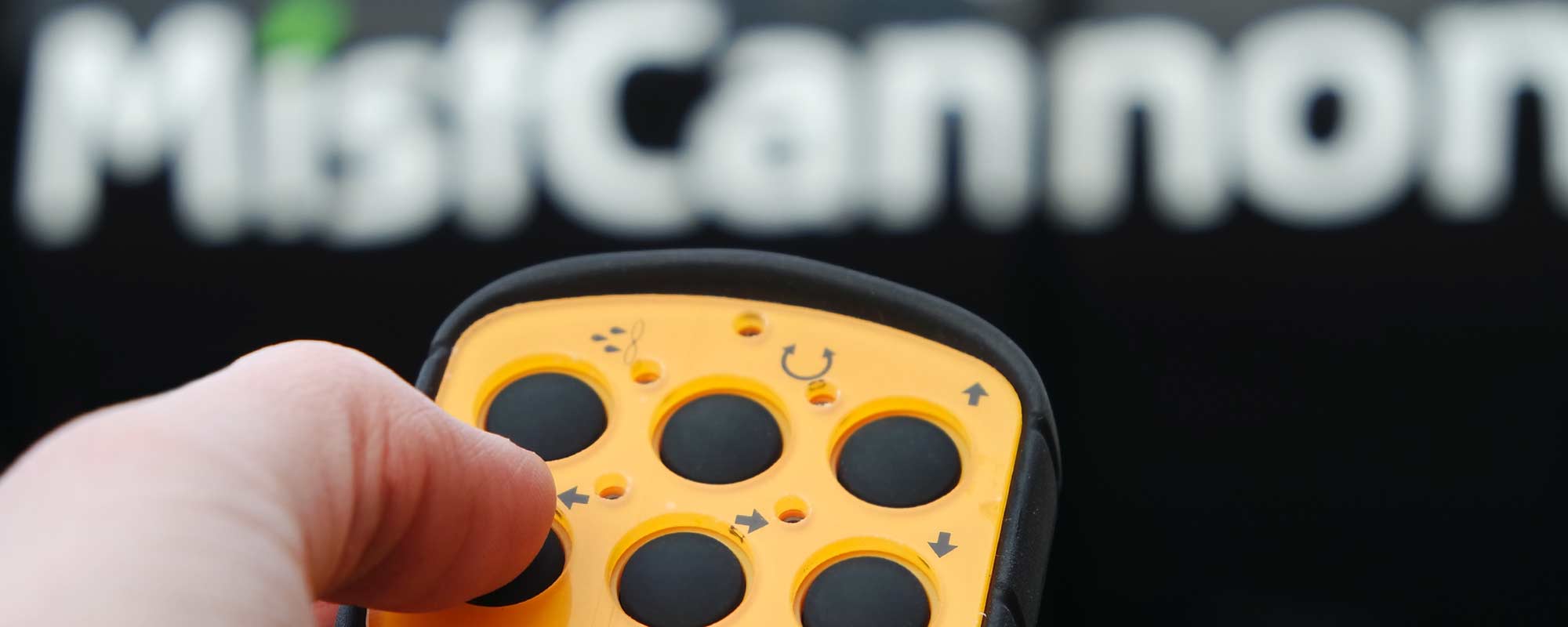

Remote control offers safe operation from a distance

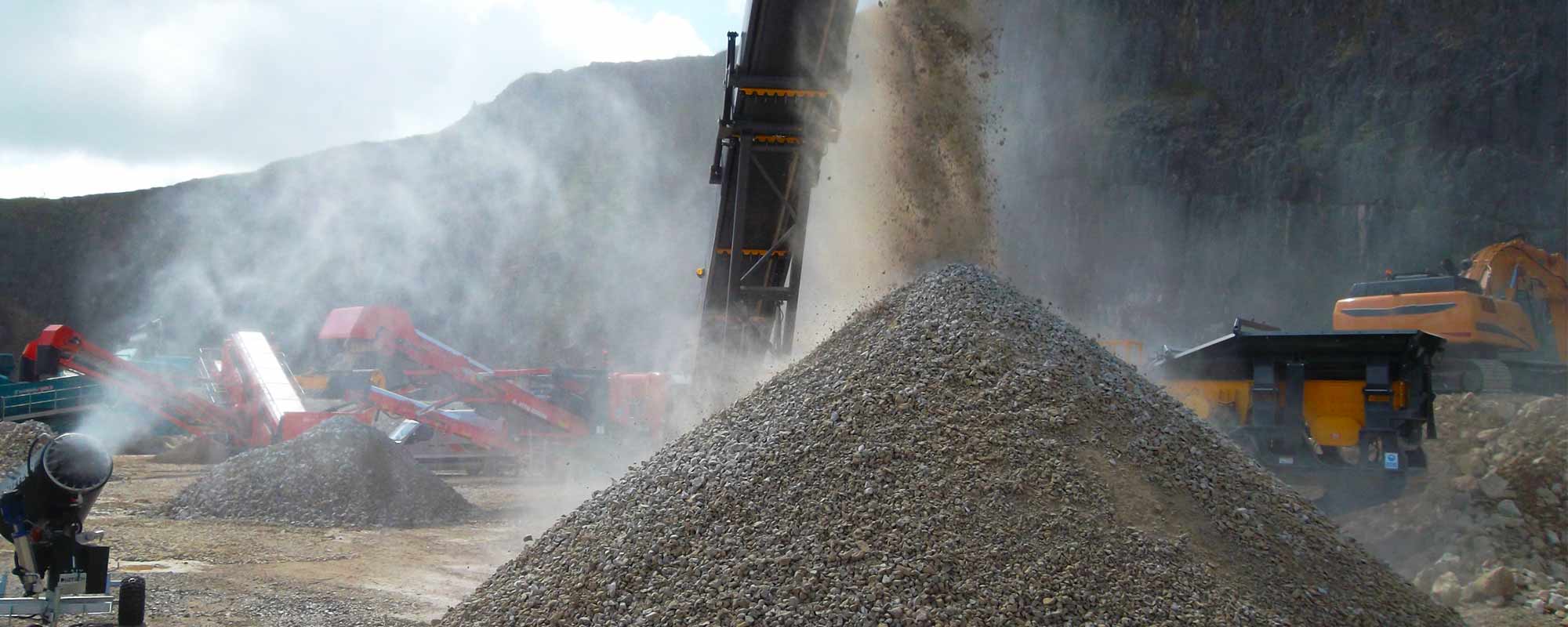

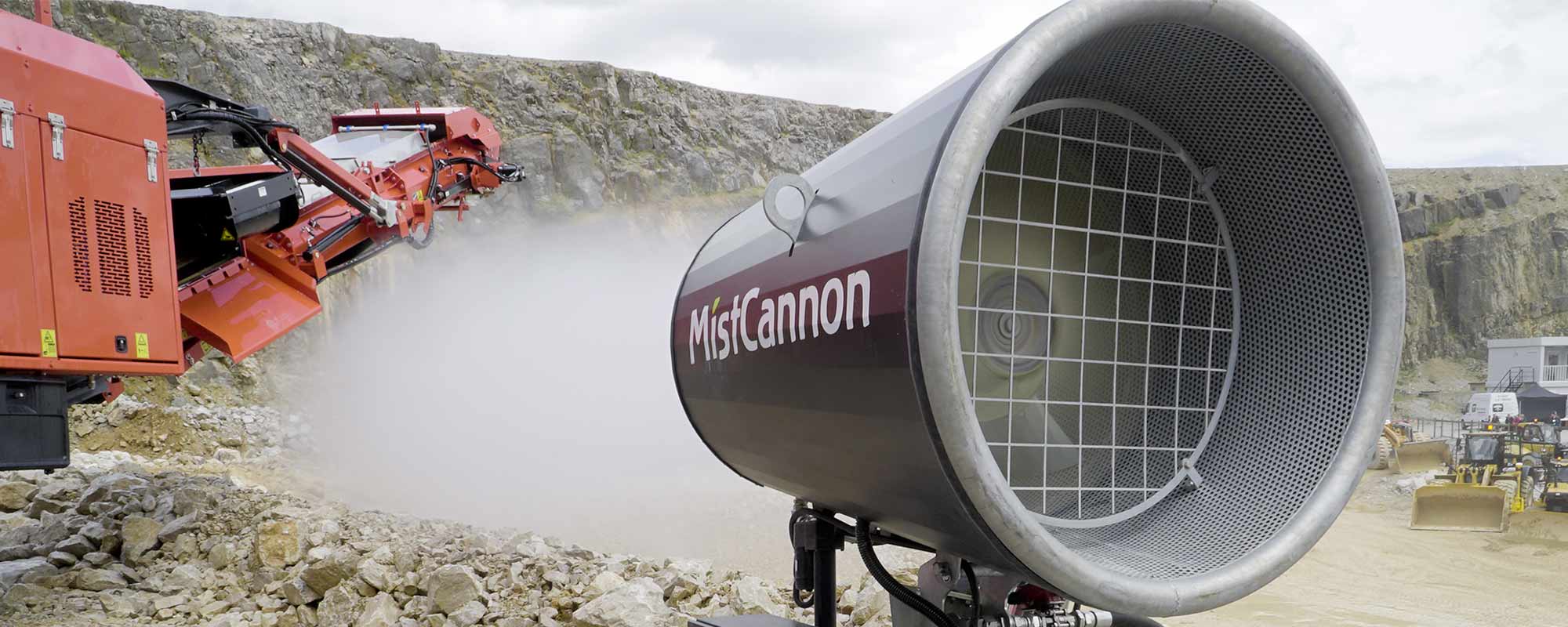

Dust suppression during stone crushing operations
Our MistCannons always prove very popular at exhibitions
MistCannons are the ultimate tool for large-scale dust suppression. By means of a powerful turbo-fan, they project a plume of finely-atomised water droplets into the air to suppress dust effectively over wide areas, before it disperses into the environment.
MistCannons can propel mist up to 80 linear metres and can swivel almost full circle, meaning maximum ground coverage can be up to 20,000m² from a single location. These mist cannons should not be confused with the more traditional rotary atomisers which are commonly used for localised dust and odour suppression—MistCannons play in a different league altogether!
MistCannons are built on a robust steel chassis with forklift slots for ease of transport on site. There is also the option of wheels to facilitate greater mobility on site.
MistCannons require a 3-phase, 400V power supply and a water supply. For situations where you haven’t got water available, you might want to check out MistCannon Rover instead. If you have neither power nor water available, choose MistCannon Integral or MistCannon Ranger.
Made in Scandinavia and boasting characteristically superior build quality and robustness, MistCannons can cope with the harshest conditions: whether that be aggressive industrial environments or extreme winter weather, MistCannons will weather the storm!
While placing an emphasis on performance and durability, MistCannons are also designed with the environment in mind, having features such as a two-stage water-saving function and an optional built-in silencer. The filtration system also allows the unit to utilise recycled water.
With Health & Safety Regulations tightening up, we can now offer a remote-control handset option, meaning that each MistCannon can be controlled from a safe distance, such as from inside a vehicle cab, office or control room.
MistCannons can handle all manner of dust types, from coarse wood chip to ultra-fine incinerator ash. They can also be modified to spray
Although our prime target market is the UK & Ireland, we have exported MistCannons to regions as diverse as continental Europe, Africa, the Middle East and the Far East. This says a lot about the modularity, reliability and popularity of this product.
Features |
Benefits |
|---|---|
|
Finely atomised spray - for effective removal of airborne dust as well as for damping down dusty surfaces Optional remote control - allows the MistCannon to be operated from a distance, away from the work face 2-stage spray configuration - reduces water consumption Automatic inlet valve - reduces water consumption Optional silencer baffle - reduces potential noise nuisance and health issues |
Safer for personnel and for the environment |
|
Powerful turbofan & booster pump - allows increased coverage, reducing the need for multiple units Automated oscillation & tilt - allows increased coverage, reducing the need for multiple units Throw range of up to 100m - allows increased coverage, reducing the need for multiple units Forkliftable or wheeled chassis - allows you to relocate the MistCannon easily, also reducing the need for multiple units Wall Mount or Post Mount - provide the flexibility to mount the MistCannon to your requirement, also reducing the need for multiple units Optional dosing pump - allows the MistCannon to be used with odour neutralisers, insecticides or disinfectants |
Maximum utilisation of your investment |
|
Optional remote control - allows your operators to control the MistCannon remotely, saving them time and effort 2-stage spray configuration - reduces water consumption costs Automatic inlet valve - reduces water consumption costs |
Lower operating costs |
|
Pump protection - reduces the risk of damage to your pump Winter kit - reduces the risk of frost damage and allows the MistCannon to be used at low temperatures Automatic drain valve - reduces the risk of frost damage and allows the MistCannon to be used at low temperatures |
Reduced downtime & increased reliability |
The familiar and well-loved A-type MistCannon range has now been superseded by the new D-Series. D-Series MistCannons have a number of new and improved design features, as well as better efficiency and lower water output. We still have many A-type MistCannons on our hire fleet, although all new additions to the fleet will now be D-Series. All new MistCannon purchases will be D-Series.
|
Specification |
D35 |
D45 |
D60 |
D80 |
D100 |
|
Maximum Throw (metres) |
35 |
45 |
60 |
80 |
100 |
|
Maximum Coverage (m²) |
3800 |
6350 |
11300 |
20100 |
31400 |
|
Total Power (kW) |
8.2 |
10.2 |
21.2 |
32.7 |
41.4 |
|
Fan Power (kW) |
5.5 |
7.5 |
18.5 |
30 |
37 |
|
Pump Power (kW) |
2.2 |
2.2 |
2.2 |
2.2 |
4 |
|
Full Load Current or FLC (A) |
14 |
19 |
42 |
55 |
63 |
|
Start Up Current (A) |
42 |
84 |
120 |
174 |
VSD |
|
Noise Level (dBA at 1m) |
83-96 |
92-102 |
100-112 |
93-103 |
92-102 |
|
Noise Level With Silencer (dBA at 1m) |
78-91 |
84-98 |
93-106 |
Not Available |
Not Available |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
16 A |
32 A |
63 A |
63 A |
125 A |
|
Suggested Generator Size (kVA) |
20 |
30 |
50 |
60 |
150 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-25 L/min (1x nozzle cluster spraying only) |
25-40 L/min (1x nozzle cluster spraying only) |
30-90 L/min (3x nozzles spraying) |
||
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-60 L/min (3x nozzle cluster spraying) |
25-100 L/min (3x nozzle cluster spraying) |
30-100 L/min (9x nozzle spraying) |
||
|
Droplet Size (microns) |
10-150 (mean 70) |
20-200 (mean 100) |
|||
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1" BSP male thread (DN25) |
1.5" BSP male thread (DN40) |
|||
|
Water Supply Pressure (bar) |
2-12 |
2-12 |
2-12 |
2-12 |
2-12 |
|
Working Pressure (bar) |
5-18 |
5-19 |
|||
|
Weight (standard) (kg) |
395 |
415 |
445 |
545 |
895 |
|
Weight With Wheels (kg) |
505 |
525 |
555 |
655 |
Not Applicable |
|
Weight with post-mount 1 metre frame (kg) |
605 |
625 |
655 |
Not Applicable |
Not Applicable |
|
Weight with wall-Mount frame (kg) |
550 |
570 |
600 |
Not Applicable |
Not Applicable |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.16 x 1.1 x 2.07 |
1.57 x 1.27 x 2.49 |
|||
|
Dimensions With Wheelset (Length x Width x Height in metres) |
2.7 x 1.9 x 2.25 |
Not Applicable |
|||
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
0.85 x 1.51 x 2.21 |
Not Applicable |
Not Applicable |
||
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
1.41 x 1.26 x 3.08 |
1.41 x 1.26 x 3.08 |
1.41 x 1.26 x 3.08 |
Not Applicable |
Not Applicable |
|
Vertical Tilt (degrees) |
-20 to +50° |
-20 to +50° |
-20 to +50° |
-20 to +50° |
-25 to +70° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
||||
|
Remote Control Range |
100 metre open range |
||||
|
Specification |
A30 |
A40 |
A50 |
A60 |
|
Maximum Throw (metres) |
30 |
40 |
60 |
80 |
|
Total Power (kW) |
7.7 |
9.7 |
20.7 |
32.2 |
|
Fan Power (kW) |
5.5 |
7.5 |
18.5 |
30 |
|
Pump Power (kW) |
2.2 |
2.2 |
2.2 |
2.2 |
|
Full Load Current or FLC (A) |
15 |
20 |
42 |
54 |
|
Start Up Current (A) |
42 |
84 |
120 |
174 |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
16 A |
32 A |
63 A |
63 A |
|
Suggested Generator Size (kVA) |
20 |
30 |
60 |
60 |
|
Water Output, Stage 1 (Water-saving): 7 nozzles (l/m) |
20-40 |
20-40 |
20-40 |
20-40 |
|
Water Output, Stage 2 (Full Operation): 14 nozzles (l/m) |
40-60 |
40-60 |
40-60 |
40-60 |
|
Droplet Size (microns) |
10-150 (mean 70) |
10-150 (mean 70) |
10-150 (mean 70) |
10-150 (mean 70) |
|
Water Supply Connection |
1" BSP male thread (DN25) – normally supplied fitted with QR coupling but can be changed to suit site requirements |
|||
|
Water Supply Pressure (bar) |
2-10 |
2-10 |
2-10 |
2-10 |
|
Working Pressure (bar) |
5-15 |
5-15 |
5-15 |
5-15 |
|
Weight Without Wheels (kg) |
435 |
465 |
515 |
690 |
|
Weight of Wheels (kg) |
105 |
105 |
105 |
105 |
|
Weight with Wheels (kg) |
540 |
570 |
620 |
795 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.4 x 1.3 x 1.9 |
1.4 x 1.3 x 1.9 |
1.4 x 1.3 x 1.9 |
1.4 x 1.3 x 2.1 |
|
Dimensions of Palletised Wheels (Length x Width x Height in meters) |
1.2 x 1.0 x 0.8 |
1.2 x 1.0 x 0.8 |
1.2 x 1.0 x 0.8 |
1.2 x 1.0 x 0.8 |
|
Vertical Tilt (degrees) |
-10 to +50° |
-10 to +50° |
-10 to +50° |
-10 to +50° |
|
3-Point Oscillation (standard option) |
Oscillation through either 15°, 30° or 60° from any point across a 330° range |
|||
|
Full Oscillation (optional extra) |
Full 330° range with timer function |
|||
The familiar and well-loved A-type MistCannon range has now been superseded by the new D-Series. D-Series MistCannons have a number of new and improved design features, as well as better efficiency and lower water output. We still have many A-type MistCannons on our hire fleet, although all new additions to the fleet will now be D-Series. All new MistCannon purchases will be D-Series.
|
Specification |
D35 |
|
Maximum Throw (metres) |
35 |
|
Maximum Coverage (m²) |
3800 |
|
Total Power (kW) |
8.2 |
|
Fan Power (kW) |
5.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
14 |
|
Start Up Current (A) |
42 |
|
Noise Level (dBA at 1m) |
83-96 |
|
Noise Level With Silencer (dBA at 1m) |
78-91 |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
16 A |
|
Suggested Generator Size (kVA) |
20 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-25 L/min (1x nozzle cluster spraying only) |
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-60 L/min (3x nozzle cluster spraying) |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1" BSP male thread (DN25) |
|
Water Supply Pressure (bar) |
2-12 |
|
Working Pressure (bar) |
5-18 |
|
Weight (standard) (kg) |
395 |
|
Weight With Wheels (kg) |
505 |
|
Weight with post-mount 1 metre frame (kg) |
605 |
|
Weight with wall-Mount frame (kg) |
550 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.16 x 1.1 x 2.07 |
|
Dimensions With Wheelset (Length x Width x Height in metres) |
2.7 x 1.9 x 2.25 |
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
0.85 x 1.51 x 2.21 |
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
1.41 x 1.26 x 3.08 |
|
Vertical Tilt (degrees) |
-20 to +50° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
|
Remote Control Range |
100 metre open range |
|
Specification |
D45 |
|
Maximum Throw (metres) |
45 |
|
Maximum Coverage (m²) |
6350 |
|
Total Power (kW) |
10.2 |
|
Fan Power (kW) |
7.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
19 |
|
Start Up Current (A) |
84 |
|
Noise Level (dBA at 1m) |
92-102 |
|
Noise Level With Silencer (dBA at 1m) |
84-98 |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
32 A |
|
Suggested Generator Size (kVA) |
30 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-25 L/min (1x nozzle cluster spraying only) |
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-60 L/min (3x nozzle cluster spraying) |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1" BSP male thread (DN25) |
|
Water Supply Pressure (bar) |
2-12 |
|
Working Pressure (bar) |
5-18 |
|
Weight (standard) (kg) |
415 |
|
Weight With Wheels (kg) |
525 |
|
Weight with post-mount 1 metre frame (kg) |
625 |
|
Weight with wall-Mount frame (kg) |
570 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.16 x 1.1 x 2.07 |
|
Dimensions With Wheelset (Length x Width x Height in metres) |
2.7 x 1.9 x 2.25 |
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
0.85 x 1.51 x 2.21 |
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
1.41 x 1.26 x 3.08 |
|
Vertical Tilt (degrees) |
-20 to +50° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
|
Remote Control Range |
100 metre open range |
|
Specification |
D60 |
|
Maximum Throw (metres) |
60 |
|
Maximum Coverage (m²) |
11300 |
|
Total Power (kW) |
21.2 |
|
Fan Power (kW) |
18.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
42 |
|
Start Up Current (A) |
120 |
|
Noise Level (dBA at 1m) |
100-112 |
|
Noise Level With Silencer (dBA at 1m) |
93-106 |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
63 A |
|
Suggested Generator Size (kVA) |
50 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-25 L/min (1x nozzle cluster spraying only) |
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
12-60 L/min (3x nozzle cluster spraying) |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1" BSP male thread (DN25) |
|
Water Supply Pressure (bar) |
2-12 |
|
Working Pressure (bar) |
5-18 |
|
Weight (standard) (kg) |
445 |
|
Weight With Wheels (kg) |
555 |
|
Weight with post-mount 1 metre frame (kg) |
655 |
|
Weight with wall-Mount frame (kg) |
600 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.16 x 1.1 x 2.07 |
|
Dimensions With Wheelset (Length x Width x Height in metres) |
2.7 x 1.9 x 2.25 |
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
0.85 x 1.51 x 2.21 |
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
1.41 x 1.26 x 3.08 |
|
Vertical Tilt (degrees) |
-20 to +50° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
|
Remote Control Range |
100 metre open range |
|
Specification |
D80 |
|
Maximum Throw (metres) |
80 |
|
Maximum Coverage (m²) |
20100 |
|
Total Power (kW) |
32.7 |
|
Fan Power (kW) |
30 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
55 |
|
Start Up Current (A) |
174 |
|
Noise Level (dBA at 1m) |
93-103 |
|
Noise Level With Silencer (dBA at 1m) |
Not Available |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
63 A |
|
Suggested Generator Size (kVA) |
60 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
25-40 L/min (1x nozzle cluster spraying only) |
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
25-100 L/min (3x nozzle cluster spraying) |
|
Droplet Size (microns) |
20-200 (mean 100) |
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1" BSP male thread (DN25) |
|
Water Supply Pressure (bar) |
2-12 |
|
Working Pressure (bar) |
5-19 |
|
Weight (standard) (kg) |
545 |
|
Weight With Wheels (kg) |
655 |
|
Weight with post-mount 1 metre frame (kg) |
Not Applicable |
|
Weight with wall-Mount frame (kg) |
Not Applicable |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.16 x 1.1 x 2.07 |
|
Dimensions With Wheelset (Length x Width x Height in metres) |
2.7 x 1.9 x 2.25 |
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
Not Applicable |
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
Not Applicable |
|
Vertical Tilt (degrees) |
-20 to +50° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
|
Remote Control Range |
100 metre open range |
|
Specification |
D100 |
|
Maximum Throw (metres) |
100 |
|
Maximum Coverage (m²) |
31400 |
|
Total Power (kW) |
41.4 |
|
Fan Power (kW) |
37 |
|
Pump Power (kW) |
4 |
|
Full Load Current or FLC (A) |
63 |
|
Start Up Current (A) |
VSD |
|
Noise Level (dBA at 1m) |
92-102 |
|
Noise Level With Silencer (dBA at 1m) |
Not Available |
|
Required Electrical Supply Connection (400V, 50Hz, 5 Pin Socket ie. 3-phase, neutral and earth) |
125 A |
|
Suggested Generator Size (kVA) |
150 |
|
Water Output, Stage 1, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
30-90 L/min (3x nozzle cluster spraying only) |
|
Water Output, Stage 2, 12x removable and cleanable nozzles arranged in 3x clusters within brass housings. D100 has 9x removable and cleanable brass nozzles |
30-100 L/min (9x nozzle cluster spraying) |
|
Droplet Size (microns) |
20-200 (mean 100) |
|
Water Supply Connection - All MistCannons fitted with claw coupling but can be changed to suit site requirements. |
1.5" BSP male thread (DN40) |
|
Water Supply Pressure (bar) |
2-12 |
|
Working Pressure (bar) |
5-19 |
|
Weight (standard) (kg) |
895 |
|
Weight With Wheels (kg) |
Not Applicable |
|
Weight with post-mount 1 metre frame (kg) |
Not Applicable |
|
Weight with wall-Mount frame (kg) |
Not Applicable |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.57 x 1.27 x 2.49 |
|
Dimensions With Wheelset (Length x Width x Height in metres) |
Not Applicable |
|
Dimensions With Wall Mount Frame (Length x Width x Height in metres) |
Not Applicable |
|
Dimensions With Post Mount 1m Frame (Length x Width x Height in metres) |
Not Applicable |
|
Vertical Tilt (degrees) |
-25 to +70° |
|
Oscillation (degrees) |
360° rotation range with automatic oscillation set in 10° increments from any point across the rotation range |
|
Remote Control Range |
100 metre open range |
|
Specification |
A30 |
|
Maximum Throw (metres) |
30 |
|
Total Power (kW) |
7.7 |
|
Fan Power (kW) |
5.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
15 |
|
|
42 |
|
Required Electrical Power Connector (400V, 3-ph N&E, 50Hz) |
16 A |
|
Suggested Generator Size (kVA) |
20 |
|
Water Output, Stage 1 (Water-saving): 7 nozzles (l/m) |
20-40 |
|
Water Output, Stage 2 (Full Operation): 14 nozzles (l/m) |
40-60 |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - 1" BSP male thread (DN25) – normally supplied fitted with QR coupling but can be changed to suit site requirements |
|
|
Water Supply Pressure (bar) |
2-10 |
|
Working Pressure (bar) |
5-15 |
|
Weight Without Wheels (kg) |
435 |
|
Weight of Wheels (kg) |
105 |
|
Weight with Wheels (kg) |
540 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.4 x 1.3 x 1.9 |
|
Dimensions of Palletised Wheels (Length x Width x Height in metres) |
1.2 x 1.0 x 0.8 |
|
Vertical Tilt (degrees) |
-10 to +50° |
|
Specification |
A40 |
|
Maximum Throw (metres) |
40 |
|
Total Power (kW) |
9.7 |
|
Fan Power (kW) |
7.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
20 |
|
|
84 |
|
Required Electrical Power Connector (400V, 3-ph N&E, 50Hz) |
32 A |
|
Suggested Generator Size (kVA) |
30 |
|
Water Output, Stage 1 (Water-saving): 7 nozzles (l/m) |
20-40 |
|
Water Output, Stage 2 (Full Operation): 14 nozzles (l/m) |
40-60 |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - 1" BSP male thread (DN25) – normally supplied fitted with QR coupling but can be changed to suit site requirements |
|
|
Water Supply Pressure (bar) |
2-10 |
|
Working Pressure (bar) |
5-15 |
|
Weight Without Wheels (kg) |
465 |
|
Weight of Wheels (kg) |
105 |
|
Weight with |
570 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.4 x 1.3 x 1.9 |
|
Dimensions of Palletised Wheels (Length x Width x Height in metres) |
1.2 x 1.0 x 0.8 |
|
Vertical Tilt (degrees) |
-10 to +50° |
|
Specification |
A50 |
|
Maximum Throw (metres) |
60 |
|
Total Power (kW) |
20.7 |
|
Fan Power (kW) |
18.5 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
42 |
|
|
120 |
|
Required Electrical Power Connector (400V, 3-ph N&E, 50Hz) |
63 A |
|
Suggested Generator Size (kVA) |
60 |
|
Water Output, Stage 1 (Water-saving): 7 nozzles (l/m) |
20-40 |
|
Water Output, Stage 2 (Full Operation): 14 nozzles (l/m) |
40-60 |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - 1" BSP male thread (DN25) – normally supplied fitted with QR coupling but can be changed to suit site requirements |
|
|
Water Supply Pressure (bar) |
2-10 |
|
Working Pressure (bar) |
5-15 |
|
Weight Without Wheels (kg) |
515 |
|
Weight of Wheels (kg) |
105 |
|
Weight with Wheels (kg) |
620 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.4 x 1.3 x 1.9 |
|
Dimensions of Palletised Wheels (Length x Width x Height in metres) |
1.2 x 1.0 x 0.8 |
|
Vertical Tilt (degrees) |
-10 to +50° |
|
Specification |
A60 |
|
Maximum Throw (metres) |
80 |
|
Total Power (kW) |
32.2 |
|
Fan Power (kW) |
30 |
|
Pump Power (kW) |
2.2 |
|
Full Load Current or FLC (A) |
54 |
|
|
174 |
|
Required Electrical Power Connector (400V, 3-ph N&E, 50Hz) |
63 A |
|
Suggested Generator Size (kVA) |
60 |
|
Water Output, Stage 1 (Water-saving): 7 nozzles (l/m) |
20-40 |
|
Water Output, Stage 2 (Full Operation): 14 nozzles (l/m) |
40-60 |
|
Droplet Size (microns) |
10-150 (mean 70) |
|
Water Supply Connection - 1" BSP male thread (DN25) – normally supplied fitted with QR coupling but can be changed to suit site requirements |
|
|
Water Supply Pressure (bar) |
2-10 |
|
Working Pressure (bar) |
5-15 |
|
Weight Without Wheels (kg) |
690 |
|
Weight of Wheels (kg) |
105 |
|
Weight with Wheels (kg) |
795 |
|
Dimensions Without Wheels (Length x Width x Height in metres) |
1.4 x 1.3 x 2.1 |
|
Dimensions of Palletised Wheels (Length x Width x Height in meters) |
1.2 x 1.0 x 0.8 |
|
Vertical Tilt (degrees) |
-10 to +50° |
|
3-Point Oscillation (standard option) |
|
|
Oscillation through either 15°, 30° or 60° from any point across a 330° range |
|
|
Full Oscillation (optional extra) |
|
|
Full 330° range with timer function |
|
|
Where are MistCannons used? |
Why are they selected? |
|
Quarries |
Remote control operation |
|
Mines |
Lower noise emissions |
|
Ports |
Low water usage |
|
Steelworks |
Rapid deployment from hire fleet |
|
Outdoor Recycling Facilities |
Ease of mobility |
|
Demolition Sites |
Cooling and evaporation |
|
Construction Sites |
|
|
Bulk Materials Handling |
|
|
Aggregate Handling |
|
|
Waste Transfer Stations (WTS) |
|
|
Energy from Waste Facilities |
|
© Copyright Corgin Ltd
VAT Number: 756 1626 20
Company Number: 621 8442
Phone: +44 (0)1785 229300
Share This Page
LinkedIn Facebook Twitter Google Plus Email
