Atomister Hyflo

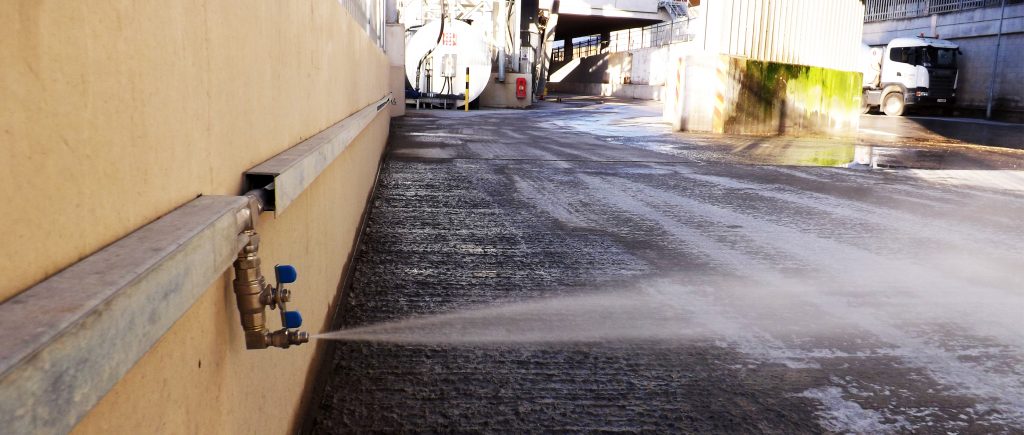

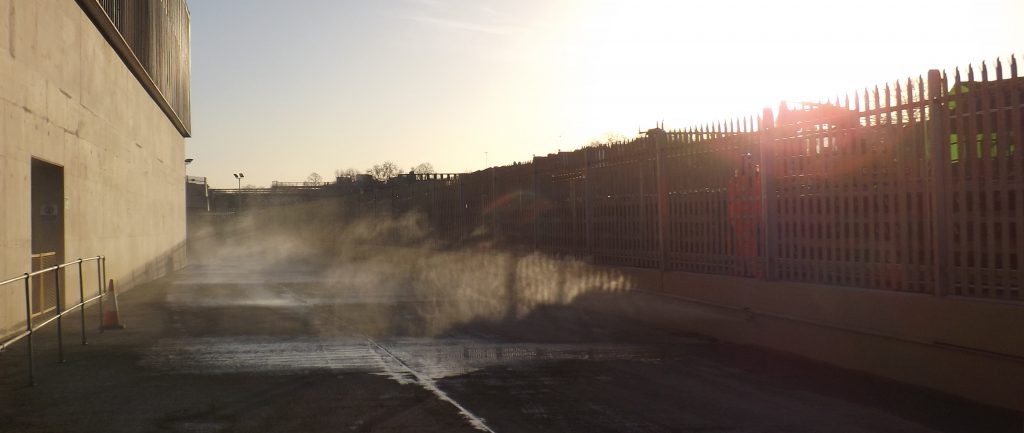

When a high-intensity targeted system is required for driveway dust suppression or other outdoor applications, make AtomisterHyflo your choice. Utilising the same, well-proven treatment concept as our DustLayer mobile unit, the high-pressure, high-volume nozzles are designed to deliver a voluminous flat-fan mist spray for situations where there are intensive dust emissions.

Concept to Implementation

It is a well-established fact that some forms of outdoor dust suppression, for instance sprinkler systems, sector sprayers or rain guns, use excessive amounts of water and can cause issues with flooding, contaminated surface water run-off and undue soaking of products, process equipment or personnel.  We have identified an increasing number of applications where clients require an intense spray that efficiently overwhelms airborne dust emissions close to their source and comprehensively dampens dusty surfaces—without causing the consequent issues mentioned above. In virtue of the fact that ‘necessity is the mother of invention’, Corgin have recently developed AtomisterHyflo.   We know that DustLayer has already established itself as a firm favourite where mobile units are required in such situations; AtomisterHyflo now builds on this success as a static system, ideal for roads and other similar situations.

Innovation and Functionality

AtomisterHyflo systems consist of a high-pressure pump, header tank, electrical control panel and all the necessary regulation and filtration.  High pressure hose and stainless steel nozzles are installed as required, facilitating targeted dust suppression close to the point of dust generation.   Many special requirements can be accommodated within the design of your system: options for dosing of dust suppressant, antifreeze solution for frost protection or disinfectant for reduction of Legionellae risk are available.  Various control philosophies can be incorporated, for instance you might want to consider linking the operation of the system to operation of process equipment, to a timer or to a wind vane.  Please discuss your unique needs with your Corgin representative.


All of our AtomisterHyflo systems come with a free 1 year warranty, but to give you additional peace of mind about the ongoing maintenance of your system, we recommend that you consider taking out a CarePlan subscription. This includes service visits, spare parts, regular customer care contact and much more – all to ensure that your system is kept in good working order.

Features & Benefits

Features Benefits

Steel skid & frame with fork slots for mounting of mechanical control hardware

For protection and containment of components and for ease of manoeuvring into final position

High pressure pump

To produce the atomised mist spray

500-litre water tank with float valve

To provide buffer for recirculation of surplus water from pump & prevent overheating

Solenoid dosing pump

For automatic dosing of dust suppressant or other additives as required

Electrical control panel with auto-timer control function

For flexible, unmanned operation if required

High pressure, high-volume nozzles in stainless steel

For producing the voluminous, flat-fan mist spray

High pressure, braided rubber hose and high pressure fittings

For flexibility during installation and safety during operation
